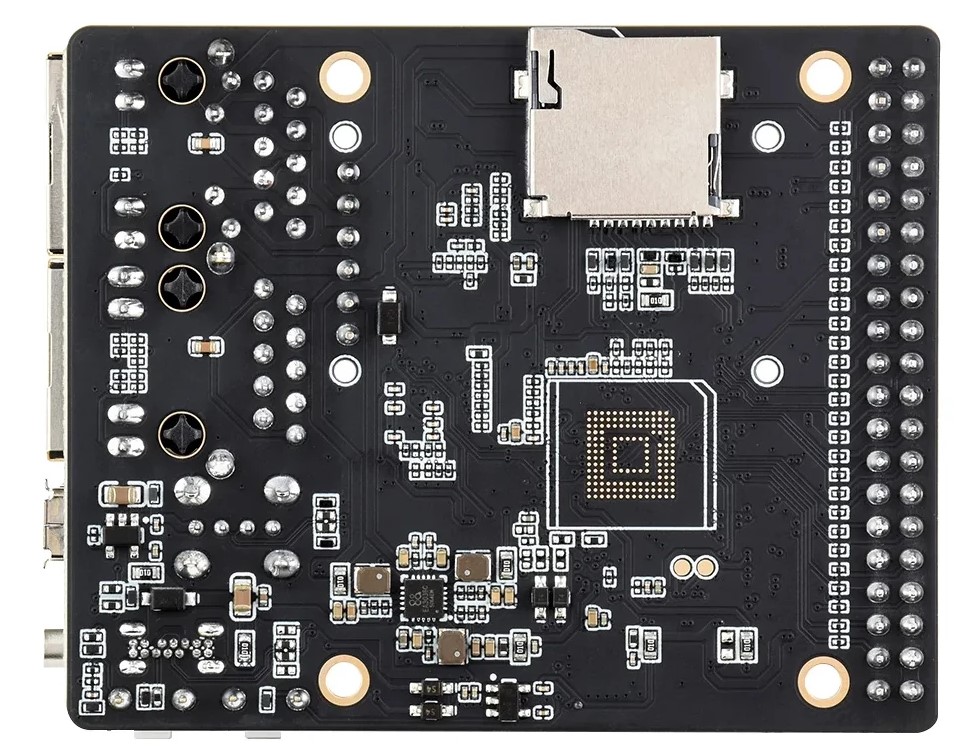

The Luckfox Lume is a compact, industrial-grade Single Board Computer (SBC) designed for HMI and high-performance I/O applications. Powered by the Allwinner T153 SoC, it features a unique quad-core Cortex-A7 and XuanTie E907 RISC-V hybrid architecture, making it an excellent choice for low-power control tasks and demanding industrial environments.
Why This Matters: The Sales Engineer's Perspective
From an industrial sales perspective, the Luckfox Lume fills a critical gap for compact HMI (Human-Machine Interface) solutions. While previous Allwinner T-series chips often required external DDR3, the T153 M3-QSX variant utilizes a System-in-Package (SiP) design with 128MB built-in DDR3 RAM. This reduces PCB complexity and failure points in high-vibration industrial settings. With dual Gigabit Ethernet and optional PoE, it's a "set and forget" gateway for MIPI-based touch panels.
Luckfox Lume Specifications
Component | Specification |
|---|---|
SoC | Allwinner T153 M3-QCX (SiP) |
CPU | 4x Arm Cortex-A7 cores @ up to 1.6GHz + 1x XuanTie E907 RISC-V core @ up to 600MHz |
Memory | 128MB built-in DDR3 (on-chip) |
Storage | 256MB SPI NAND flash + MicroSD slot |
Networking | 2x Gigabit Ethernet RJ45 (Maxio MAE0621A-Q3C), optional PoE |
Display | 4-lane MIPI DSI |
Camera | 2-lane MIPI CSI |
Expansion | 40-pin GPIO (6x UART, 2x I2C, 1x SPI, 4x ADC) |
USB | 1x USB 2.0 Type-C (Power/Data), 1x USB 2.0 Type-A |
Dimensions | 68 x 55 mm |
Hybrid Architecture: Cortex-A7 vs RISC-V
The inclusion of the XuanTie E907 RISC-V core alongside the quad-core Cortex-A7 array allows for sophisticated heterogeneous computing. The Cortex-A7 cores handle the Buildroot-based operating system and high-level HMI graphics, while the RISC-V core can manage specialized low-latency real-time control via the GPIO pins without interrupting the main OS scheduler.
Connectivity and Industrial Integration
Equipped with dual Gigabit Ethernet RJ45 ports, the Luckfox Lume excels as an industrial gateway. One port can be configured with a specialized Waveshare PoE Module (B), allowing the board to power both the SBC and high-brightness MIPI touch displays through a single Cat6 cable.
Software and Development
Currently, the Luckfox Lume relies on Allwinner’s Phoenix Suite and specific Windows-based flashing tools for the initial Buildroot setup. While the current documentation is primarily in Chinese, the board supports FEL mode for direct firmware loading, which is critical for volume deployments in PLC (Programmable Logic Controller) or data logging scenarios.
The Luckfox Lume is available for approximately $24.99 (non-PoE) to $29.99 (PoE) on retail platforms like AliExpress and the Waveshare shop.
